Definition Type Group
Name DigitalRepresentationElements
Namespace http://multimatch.org/schema/multimatchMetadata-1.1
XSD Schema .\multimatchMetadata-1.1.xsd

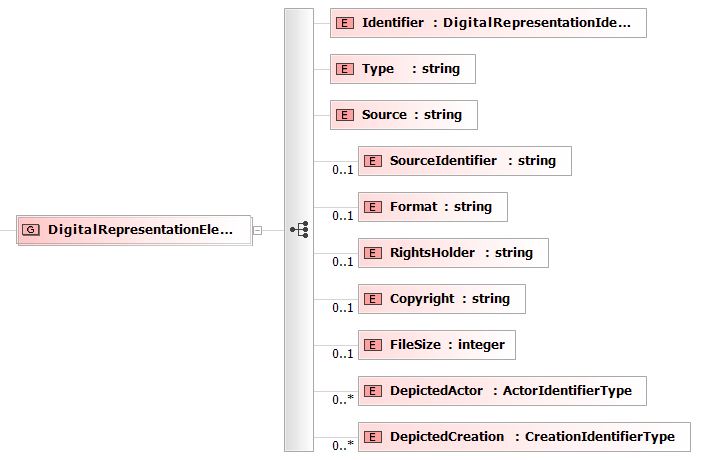

XSD Schema Diagram
XSD Schema Code
<xsd:group xmlns:xsd="http://www.w3.org/2001/XMLSchema" name="DigitalRepresentationElements" >
  <xsd:sequence>
    <xsd:element name="Identifier" type="mmns:DigitalRepresentationIdentifierType"/>
    <xsd:element name="Type" type="xsd:string"/>
    <xsd:element name="Source" type="xsd:string"/>
    <xsd:element minOccurs="0" maxOccurs="1" name="SourceIdentifier" type="xsd:string"/>
    <xsd:element minOccurs="0" maxOccurs="1" name="Format" type="xsd:string"/>
    <xsd:element minOccurs="0" maxOccurs="1" name="RightsHolder" type="xsd:string"/>
    <xsd:element minOccurs="0" maxOccurs="1" name="Copyright" type="xsd:string"/>
    <xsd:element minOccurs="0" maxOccurs="1" name="FileSize" type="xsd:integer"/>
    <xsd:element minOccurs="0" maxOccurs="unbounded" name="DepictedActor" type="mmns:ActorIdentifierType"/>
    <xsd:element minOccurs="0" maxOccurs="unbounded" name="DepictedCreation" type="mmns:CreationIdentifierType"/>
  </xsd:sequence>
</xsd:group>
Child Elements
Name Type Min Occurs Max Occurs
Identifier mmns:Identifier (1) (1)
Type mmns:Type (1) (1)
Source mmns:Source (1) (1)
SourceIdentifier mmns:SourceIdentifier 0 1
Format mmns:Format 0 1
RightsHolder mmns:RightsHolder 0 1
Copyright mmns:Copyright 0 1
FileSize mmns:FileSize 0 1
DepictedActor mmns:DepictedActor 0 unbounded
DepictedCreation mmns:DepictedCreation 0 unbounded
Derivation Tree
[No Sub Types]
DigitalRepresentationElements
    [No Super Types]
