MultiMatch XML Schema 1.1 Generated using Liquid XML Studio by Liquid Technologies Ltd
21 January 2008
Definition Type Group
Name WebpageElements
Namespace http://multimatch.org/schema/multimatchMetadata-1.1
XSD Schema .\multimatchMetadata-1.1.xsd

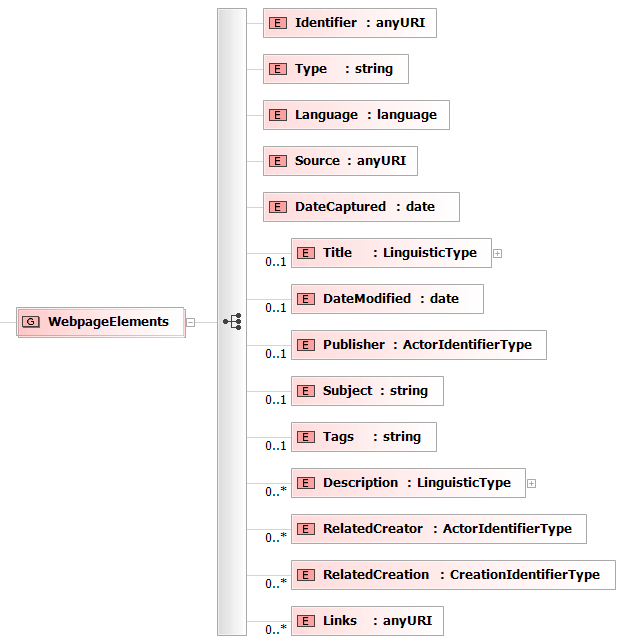

XSD Schema Diagram
XSD Schema Code
<xsd:group xmlns:xsd="http://www.w3.org/2001/XMLSchema" name="WebpageElements" >
  <xsd:sequence>
    <xsd:element name="Identifier" type="xsd:anyURI"/>
    <xsd:element name="Type" type="xsd:string"/>
    <xsd:element name="Language" type="xsd:language"/>
    <xsd:element name="Source" type="xsd:anyURI"/>
    <xsd:element name="DateCaptured" type="xsd:date"/>
    <xsd:element minOccurs="0" maxOccurs="1" name="Title" type="mmns:LinguisticType"/>
    <xsd:element minOccurs="0" maxOccurs="1" name="DateModified" type="xsd:date"/>
    <xsd:element minOccurs="0" maxOccurs="1" name="Publisher" type="mmns:ActorIdentifierType"/>
    <xsd:element minOccurs="0" maxOccurs="1" name="Subject" type="xsd:string"/>
    <xsd:element minOccurs="0" maxOccurs="1" name="Tags" type="xsd:string"/>
    <xsd:element minOccurs="0" maxOccurs="unbounded" name="Description" type="mmns:LinguisticType"/>
    <xsd:element minOccurs="0" maxOccurs="unbounded" name="RelatedCreator" type="mmns:ActorIdentifierType"/>
    <xsd:element minOccurs="0" maxOccurs="unbounded" name="RelatedCreation" type="mmns:CreationIdentifierType"/>
    <xsd:element minOccurs="0" maxOccurs="unbounded" name="Links" type="xsd:anyURI"/>
  </xsd:sequence>
</xsd:group>
Child Elements
Name Type Min Occurs Max Occurs
Identifier mmns:Identifier (1) (1)
Type mmns:Type (1) (1)
Language mmns:Language (1) (1)
Source mmns:Source (1) (1)
DateCaptured mmns:DateCaptured (1) (1)
Title mmns:Title 0 1
DateModified mmns:DateModified 0 1
Publisher mmns:Publisher 0 1
Subject mmns:Subject 0 1
Tags mmns:Tags 0 1
Description mmns:Description 0 unbounded
RelatedCreator mmns:RelatedCreator 0 unbounded
RelatedCreation mmns:RelatedCreation 0 unbounded
Links mmns:Links 0 unbounded
Derivation Tree
[No Sub Types]
WebpageElements
    [No Super Types]
